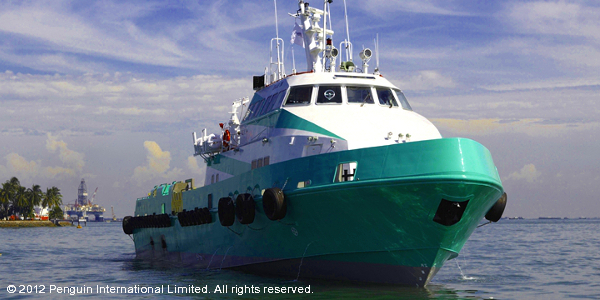

Flex-38 & Flex-38L

The Green Crewboat, optimised for fuel efficiency.

Vessel Overview
	Flex-38	Flex-38L
Vessel	38-metre Aluminium Fast Support Vessel
Classification	ABS +A1 HSC +AMS "Crewboat"
Safety Regulation	ABS and Flag State Requirements
Regs, Codes, Guidelines	(MARPOL, SOLAS, IMDG)

Hull Particulars
	Flex-38	Flex-38L
Length Overall	38.00 m
Beam	7.60 m
Moulded Depth	3.65 m
Loaded Draft	1.88 m

Cargo Deck
	Flex-38	Flex-38L
Clear Deck Space	80 sqm	100 sqm
Deck Cargo Capacity	55 MT
Deck Strength	2.0 MT / sqm
Deck Dimensions	13.6 m x 5.9 m	16.8 m x 5.9 m
Cargo Railing Height	1.0 m
Remarks	Adequate cargo retainers and lashing lugs on both sides for securing deck cargo

Tonnage
	Flex-38	Flex-38L
GRT	257 MT
NRT	77 MT
DWT	130 MT

Machinery
	Flex-38	Flex-38L
Number of Main Engines	3 units with resilient mountings
Make / Type	Cummins KTA38-M2 Mechanical IMO Tier 2
Total BHP	3 x 1,100 BHP @ 1900 rpm
Propellers	3 x fixed pitch, nickel alum bronze, 5 blades
Bow Thruster	1 unit electro-hydraulic @ 100 HP
Remote CCTV System for Engine Room	Fitted

Performance
	Flex-38	Flex-38L
Maximum Speed	25 knots @ 100% MCR @ 31.5MT DWT
Maximum Fuel Consumption	630 L/hr
Economical Speed	24 knots @ 85% MCR @ 31.5MT DWT
Economical Fuel Consumption	510 L/hr

Generating Sets (Auxiliaries)
	Flex-38	Flex-38L
Prime Movers	2 x 92 eKw@ 1500 rpm
Make / Type	2 x Baudouin 6W105S
Generators	2 x Leroy-Somer LSAM 44.2 L12 92eKw
Vessel Power Supply	415/220 Volt AC, 50Hz, 3ph + 24 Volt DC
Shore Connection / Food Container Socket	Yes

Seating and Accommodation
	Flex-38	Flex-38L
Passenger Capacity	90 reclining passenger seats	78 reclining passenger seats
Cabins / Bunks	4 / 8
Mess	Fitted
Entertainment System	3 units of LCD TV Screens
Public Address System	Fitted
Toilets	2 cubicles for passenger use
Walk-In Freezer and Chiller	Fitted

Electronics and Controls
	Flex-38	Flex-38L
GMDSS	Sailor 5000 A1 + A2
VHF	Sailor 5022
SSB Radio (Non-GMDSS)	ICom IC-M701
Satellite Telephone / Fax	FBB 150
Marine Radar	Simrad NX40X2, 64NM
GPS	Furuno GP-32
Depth / Echo Sounder	Lowrence HDS 5X
Gyro Compass	Simrad RGC50
Magnetic Compass	Ravira 6″
Navtex	Samyung SNX 300
Public Address / Intercom System	DeckTalk
Search Lights	San Shin x 3, 1000W
EPIRB	McMurdo E5
SART	McMurdo S4
AIS	Samyung S1-30

Tank Capacities
	Flex-38	Flex-38L
Fuel Oil	65,000 L	72,000 L
Fresh Water	30,000 L

Oil Pollution Tank Capacity and Control
	Flex-38	Flex-38L
Dirty Oil Tank	0.8 cbm
Dispersant	0.2 cbm
IMO Approved Sewage Treatment Plant	Fitted for 15 Pax

Life Saving (SOLAS) Equipment
	Flex-38	Flex-38L
Life Rafts	2 x 50-man and 2 x 10-man each side, SOLAS	2 x 50-man and 1 x 10-man each side, SOLAS
Life Jackets	108	95
Life Buoys	8 on board as per SOLAS
Rescue Zone	Yes
Scrambling Nets	2 units
Other Equipment	Pyrotechnics, line-throwing apparatus

Emergency Response Features
Ext fire fighting monitor with remote clutch and 600 cbm per hour fire pump, motorised workboat and davit.

Flex Options
	Flex-38	Flex-38L
Business class seats	Optional
Passenger chill-out area	Optional
Dedicated hospital room with attached toilet	Optional
Wifi for passengers	Optional
Dispersant with spray nozzle	Optional
Armour plating	Optional
Active interceptors for enhanced performance	Optional
