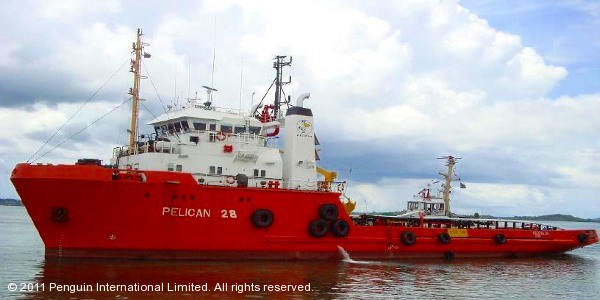

Pelican 28

57m, Ocean Going Supply Vessel (AHTS)

General
Owners	Pelican Offshore Services Pte Ltd
Port of Registry & Flag	Panama
Official Number	34890
Call Sign	HO 4724
Year Built	1983
Builders	Scheepswerf Voorwaarts B.V. Hoogezand
Classification	ABS + A1(E) ACC Ocean Going Supply Vessel

Dimensions
Length Overall	57.44m
Breadth	12.50m
Draft (Max)	5.8m
GRT/NRT	1089 Tons / 326 Tons

Cargo Capacities
Deadweight	545 T at 4.00m draught 1004 T at 4.81m draught
Deck Cargo	500 Tons
Clear Deck Space	Total Area 280m2
Deck Strength	5 Tons/m2
Fuel Oil	468m3
Drill Water	380m3
Liquid Mud	208m3
Pot Water	188m3
Dry Bulk	6 tanks @ 800cbft, max weight 60T/tank, Total 4800 cbft

Machinery & Propulsion
Main Engine	2 stork werkspoor/F240 Total 3370 BHP (2515KW)
Propellers	2 x C.P.P in nozzles (Lips) 4 blades, 2.50m dia.
Bollard Pull	40 tons
Bow Thruster	C.P. Tunnel thruster, 450 BHP (331 KW)
Thrust	4.0 Tons
Generators	2 x 141KW diesel generator (440V, 60 cycles) 1 x 160KW shaft generator (440V, 60 cycles) 1 x 70KW emergency generator (440V, 60 cycles)
Speed	12 knots
Fuel Consumption	10 knots at 8 Tons
Rudders	2 coupled, “spade” type, rudders
FiFi-Pump	1 x pump of 1200m3/hr at 20 bar 1 x monitor of 1200m3/hr for 1 remote controlled monitor on platform between smokestacks

Navigation Equipment
Auto Pilot	Pilot MK II
Radar 1	Furuno MK 1510 MK III
Radar 2	Furuno MK 1505 MK III
G.P.S.	Furuno GP31 / GP90 Navigator
Echo Sounder 1	Furuno MK II / F8575
Echo Sounder 2	Radio Holland – EL 4242A
Magnetic Compass	Observator – Pilot MK II
Gyro Compass	Anschutz – Standard IV
GMDSS	SSB, Inmarsat C, Inmarsat Mini-M
Telephone	Thrane & Thrane Mini-M

Accomodation
Crew	8 single cabins
Passengers	3 x 4 person cabin
Recreation Room	1 x 16m2
Messroom	1 x 18m2
Accommodation fully air conditioned/heated

Communication Equipment
Radiotelephone MF / HF Transmitter	SSB Sailor – RM 2151
R.T. HF/MF Receiver 1	SSB Sailor – RM 2100
TOR Receiver 2	Transon 2 SSB 2090 B
Watchreceiver (distress) DSC	SSB RM 215 C
SART	Jotron
VHF 1 + DSC	Sailor RT-2048
VHF 2 + DSC	Sailor RT-2048
EPIRB	Jotron Tron 30S MK II
Internal Comm. System	Phonico – PFK 5 Intercom Hose – McCann Telephone
Handheld VHF (3x)	GMDSS Axis 30
Handheld VHF (3x)	Motorola GP 300
Email	Globewireless

Refrigerated Storage Capacity
Passenger Capacity	70 reclining passenger seats
Cold store	8.5m3 at -20oC
Cooled store	11.3m3 at +4oC

Deck Machinery
Windlass	Electric driven, 65KW, DC Max. pull 20 Tons
Capstans	2 x 8T, electric driven, 25KW, DC
Towing/A.H. Winch	Electric driven, 65KW, DC Towing Drum: 2 separated sections Towline section: Capacity: 750m of 48mm dia. Anchor Handling Section: Capacity: 518m of 48mm dia. Max pull 60 Tons AH. Drum: Capacity: 1000m of 48mm dia. Max pull 100 Tons, water cooled discbrake for controlled paying out.
Stopper Pins	Make – Karmoy
Stern Roller	Length: 3m, Diameter 1.8m
Crane	M.O.B. crane (pneumatic, stifleg) Max. reach 4m Load 1T
Anchors/Chain	2 bows anchors of 1.4T each with 2 x 288m of 38mm chain

Cargo Pump & Discharge Rates
Exact rates are depending on discharge height of the platform and piping lay out on the platform
Dry Bulk	Compressor 1869m3/hr at 4 bar Barite @ approx 60T / hr Bentonite @ approx 120T / hr Cement @ approx 100T / hr
Fuel Oil	1 x 112m3/hr at 75 m.i.c.
Drill Water	2 x 80m3/hr at 75 m.i.c.
Potable Water	1 x 80m3/hr at 75 m.i.c.
Liquid Mud	Discharge capacity 73m3/hr at 24 bar with 4 circulating pumps each 15m3/hr at 4 bar, distributed over cargo deck
Glycol Box Oil	Capacity 60m3/hr at 60m load
Discharge Stations	Aft/forward, for all commodities
Couplings	Weco or equivalent 4″ or 5″
Metering Devices	Load & discharging meters for fuel with ticket printer
Miscellaneous	Sewage plant, 1 fuel oil separator CO2 fire fighting equipment in engine room. Vessel is fully equipped for anchor handling and towing duties. Fully equipped workshop.
