| Vessel Overview |
| Vessel |

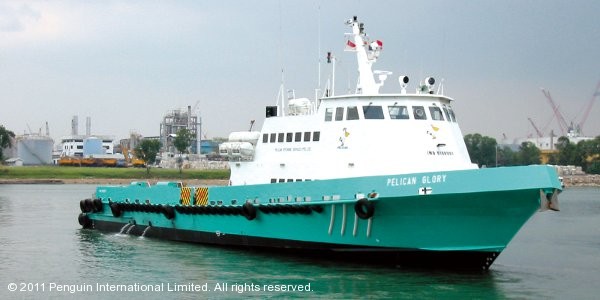

40-metre Aluminium Fast Support Vessel
Designed and built by Penguin Shipyard International |
| Classification |
ABS +A1 HSC +AMS “Crewboat” |
| Safety Regulation |
ABS and Flag State Requirements |
| Regs, Codes, Guidelines |
MARPOL, SOLAS, IMDG |
| Operator |
Alkahfi Lestari Oil & Gas Sdn Bhd |
| Hull Particulars |
| Length Overall |
40.00 m |
| Breadth Moulded |
7.60 m |
| Depth Moulded |
3.65 m |
| Loaded Draft |
1.89 m |
| Accommodation and Storage |
| Passenger Capacity |
Economy Class 70 Passengers |
| Passenger Cabins / Bunks |
1 / 2 |
| Crew Cabins / Bunks |
4 / 10 |
| Toilets |
2 cubicles for passenger use |
| Entertainment System |
3 units of LCD TV Screens |
| Sick Bay |
Fitted |
| Crew Mess |
Fitted |
| Walk-In Freezer and Chiller |
Fitted |
| Dry Store |
Fitted |
| Public Address System |
Fitted |
| Cargo Deck |
| Clear Deck Area |
100 sqm |
| Deck Cargo Capacity |
60 MT |
| Deck Strength |
2.0 MT / sqm |
| Deck Dimensions |
16.89 m x 5.9 m |
| Cargo Railing Height |
1.0 m |
| Deck Crane |
6m @ 0.5 Ton |
| Remarks |
Adequate cargo retainers and lashing lugs on both sides for securing deck cargo |
| Tank Capacities |
| Fuel Oil |
86,000 L |
| Fresh Water |
30,000 L |
| Performance |
| Maximum Speed |
27 knots @ 100% MCR & 35 MT DWT |
| Maximum Fuel Consumption |
770 L/hr |
| Economical Speed |
25 knots @ 85% MCR & 35 MT DWT |
| Economical Fuel Consumption |
650 L/hr |
| Main Machinery |
| Number of Main Engines |
3 units with resilient mountings |
| Make / Type |
3 x Cummins KTA38-M2 |
| Total BHP |
3 x 1350 BHP @ 1900 rpm |
| Propellers |
3 x fixed pitch, nickel alum bronze, 5 blades |
| Bow Thruster |
1 unit electro-hydraulic @ 100 HP |
| Remote CCTV System for Engine Room |
Fitted |
| Generating Sets (Auxiliaries) |
| Prime Movers |
3 x 80 ekW @ 1500 rpm |
| Make / Type |
3 x Cummins 6BT5.9-DM1 |
| Generators |
3 x Alternator Stamford UCM274G 80ekW |
| Vessel Power Supply |
415/220 Volt AC, 50Hz, 3ph + 24 Volt DC |
| Shore Connection / Food Container Socket |
Fitted |
| Tonnage |
| GRT |
269 MT |
| NRT |
80 MT |
| DWT |
134 MT |
| Electronics and Controls |
| GMDSS |
MF/HF 6310 A1+A2 |
| VHF |
Sailor 6222 |
| SSB Radio (Non-GMDSS) |
ICom IC-M710 |
| Satellite Telephone / Fax |
FBB 150 |
| Marine Radar |
Furuno RDP-150 |
| GPS |
Furuno GP-32 |
| Depth / Echo Sounder |
Furuno FCV 627 |
| Gyro Compass |
Simrad RGC50 |
| Magnetic Compass |
Riviera 6″ |
| Navtex |
Smartfind |
| PA / Intercom |
Vingtor Zenitel |
| Search Lights |
San Shin x 3, 1000W |
| EPIRB |
McMurdo E5 |
| SART |
McMurdo S4 |
| AIS |
Samyung S1-30 |
| Oil Pollution Tank Capacity and Control |
| Dirty Oil Tank |
0.8 cbm |
| Dispersant |
0.2 cbm |
| IMO-Approved Sewage Treatment Plant |
Fitted for 15 Pax |
| Safety of Life At Sea (SOLAS) Equipment |
| Life Rafts |
5 x 25-man each side, as per SOLAS |
| Life Jackets |
88 as per SOLAS |
| Life Buoys |
8 on board as per SOLAS |
| Rescue Zone |
Fitted |
| Scrambling Nets |
2 units |
| Other Equipment |
Pyrotechnics, line-throwing apparatus |
| Emergency Response Features |
| External Fire Fighting |
Two external fire fighting monitors with remote clutch
@ 2 x 600 cbm per hour |
| Motorised Workboat |
Fitted |
For General Arrangement and other additional details, please contact
