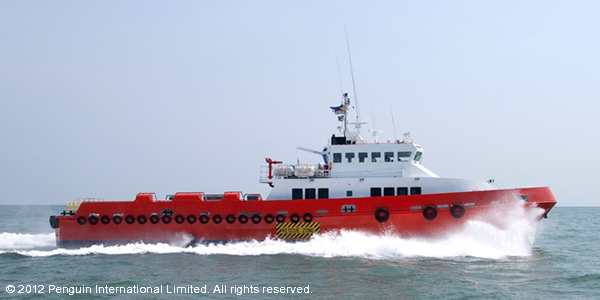

Pelican Great

Pelican Great
Vessel Overview
Vessel 36-metre Aluminium Fast Support Vessel
Designed and built by Penguin Shipyard International
Model Type Flex-36
Classification ABS +A1 HSC +AMS "Crewboat"
Year Built 2012
Safety Regulation ABS and Flag State Requirements
Regs, Codes, Guidelines MARPOL, SOLAS, ISM, ISPS, STCW95, IMDG
Hull Particulars
Length Overall 36.00 m
Breadth Moulded   7.60 m
Depth Moulded   3.65 m
Design Draft   1.88 m
Accommodation and Storage
Passenger Capacity Economy Class 70 Passengers
Crew Cabins / Bunks 4 / 8
Toilets 2 cubicles for passenger use
Entertainment System 3 units of LCD TV Screens
Crew Mess Seating for 8 crew
Walk-In Freezer and Chiller Fitted
Public Address System Fitted
Cargo Deck
Clear Deck Area 80 sqm
Deck Cargo Capacity 40 MT
Deck Strength 2.0 MT / sqm
Deck Dimensions 13.6 m x 5.9 m
Cargo Railing Height 1.0 m
Remarks Adequate cargo retainers and lashing lugs on both sides for securing deck cargo
Tank Capacities
Fuel Oil 60,000 L
Fresh Water 25,000 L
Maximum Speed 25 knots @ 100% MCR & 31 MT DWT
Maximum Fuel Consumption 770 L/hr
Economical Speed 23 knots @ 85% MCR & 31 MT DWT
Economical Fuel Consumption 650 L/hr
Main Machinery
Number of Main Engines 3 units with resilient mountings
Make / Type Cummins KTA38-M2
Total BHP 3 x 1350 BHP @ 1900 rpm
Propellers 3 x fixed pitch, nickel alum bronze, 5 blades
Bow Thruster 1 unit electro-hydraulic @ 100 HP
Remote CCTV System for Engine Room Fitted
Generating Sets (Auxiliaries)
Prime Movers 2 x 80 ekW @ 1500 rpm
Make / Type 2 x Cummins 6BT5.9-DM1
Generators 2 x Alternator Stamford UCM274G 80ekW
Vessel Power Supply 415/220 Volt AC, 50Hz, 3ph + 24 Volt DC
Shore Connection / Food Container Socket Fitted
GRT 236 MT
NRT   71 MT
DWT 110 MT
Electronics and Controls
GMDSS Sailor 5000 A1 + A2
VHF Sailor 5022
SSB Radio (Non-GMDSS) ICom IC-M710
Satellite Telephone / Fax Marinetime F33
Marine Radar Simrad NX40X2, 64NM
GPS Furuno GP-32
Depth / Echo Sounder Lowrence HDS 5X
Gyro Compass Simrad RGC50
Magnetic Compass Riviera 6”
Navtex Samyung SNX 300
PA / Intercom DeckTalk
Search Lights San Shin x 3, 1000W
EPIRB McMurdo E5
SART McMurdo S4
AIS Samyung S1-30
Oil Pollution Tank Capacity and Control
Dirty Oil Tank 0.8 cbm
Dispersant 0.2 cbm
IMO-Approved Sewage Treatment Plant Fitted for 15 Pax
Safety of Life At Sea (SOLAS) Equipment
Life Rafts 3 x 25-man and 2 x 10-man each side, as per SOLAS
Life Jackets 85 as per SOLAS
Life Buoys 8 on board as per SOLAS
Rescue Zone Fitted
Scrambling Nets 2 units
Other Equipment Pyrotechnics, line-throwing apparatus
Emergency Response Features
External Fire Fighting One external fire fighting monitor with remote clutch
@ 1 x 600 cbm per hour
Motorised Workboat and Davit Fitted
Oil Dispersant Booms Fitted
Dispersant With Spray Boom Fitted
For General Arrangement and other additional details, please contact
