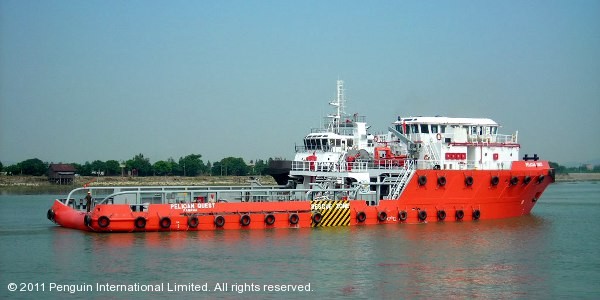

Pelican Quest

55m, Ocean Going Supply Vessel (AHTS)

General
Owners	Pelican Offshore Services Pte Ltd
Port of Registry & Flag	Panama
Official Number	36131 – PEXT
MMSI Number	356 135 000
Call Sign	HO 3689
Delivered	October 2007
Builders	Cheoy Lee Shipyards Co Ltd
Shipyard	Panyu Lingshan Shipyard, Guangzhou, China
Classification	ABS * + A1(E) OSV AH Fi Fi Class 1 +AMS
IMO Number	9430002

Dimensions
Length Overall	55.0m
Breadth	13.80m
Depth	5.50m
Draft (Max)	4.76m
GRT/NRT	1160 Tons / 348 Tons

Cargo Capacities
Deadweight	1151 Tons at 4.76m draught
Deck Cargo	500 Tons
Clear Deck Space	Total Area 331m2
Deck Strength	5 Tons/m2
Fuel Oil	427m3
Fresh Water	462m3
Liquid Mud	142m3
Drill Water / SWB	180m3
Dry Bulk	4 tanks total 113 m3

Machinery & Propulsion
Main Engine	2 x Caterpillar 3516B each 2375 BHP
Propellers	Berg – Controllable Pitch Propeller
Bollard Pull	65 Tons
Bow Thruster	Kawasaki CPP electric motor driven
Thrust	5.0 Tons
Generators	3 x diesel generator Cat 3406C
Alternator	each 245 kw
Service Speed	12 knots @ 90% MCR
Fuel Consumption	Approx. 16.25 Tons per day total as above
Rudders	2 coupled, “spade” rudders
Oily Water Separator	Taiko Kikai

Navigation Equipment
D.G.P.S.	Furuno GP-150D
Echo Sounder	Furuno FE 700
Doppler Speed Log	Furuno DS 80
Magnetic Compass	Saura MR-150
Gyro Compass	GC-80/85 Simrad
Chart Plotter	GP 3500F Simrad
ARPA Radar	Furuno FR-2115
Radar 2	Furuno 1942 Mk 2
Joystick	MT Bridgemate JX
AIS	Furuno FA-150
Autopilot	Robertson
Anemometer	Young

Communication Equipment
GMDSS	Area A3
Radiotelephone MF / HF Transmitter	Furuno FS-2570C
MF/HF DSC Terminal	Furuno DSC-60
VHF 1 Radiotelephone	Furuno FM-8800S
VHF 1 Radiotelephone	Furuno FM-8800S
Navtex	Furuno NX700A
Inmarsat C	Furuno Felcom 15
Mini M Phone/Fax/Data	Thrane/Thrane
SSAS (2x)	Skanti 3000SSA-THR
SART	2 x McMurdo S4
EPIRB	McMurdo S3
Internal Comm. System	Phontech / Vingtor
Handheld VHF (3x) GMDSS	GMDSS Axis 30
Handheld VHF (3x) Marine Ops	Motorola GP 300
Email	Globewireless
Handheld VHF (3x) GMDSS	IC-GM 1600

Deck Machinery
Towing/A.H. Winch c/w spooling gear	75 Tons line pull with 150 T brake holding
Towing Drum Capacity	1000m x 50mm dia.
Anchor Handling Drum Capacity	1000m x 50mm dia.
Powered Storage Reel with spare tow wire	1000m x 50mm dia.
Shark jaw & towing pins	Triplex
Deck Area	29m x 11.4m = 330.6m²
Tugger Winches	2 x 10 T pull at 14m/min
Capstans	2 x 5 T pull at 15m/min.
Deck Stanchions	10 in total
Windlass	Electro-hydraulic 5 T at 12m/min
Anchors/Chain	2 x 1590 kg AC14 c/w 880m at 34mm dia.

Cargo Pump & Discharge Rates
Dry Bulk	2 compressors each 20m3/hr with driers
Fuel Oil	1 x 100m3/hr at 75 m.i.c.
Drill Water	1 x 100m3/hr at 75 m.i.c.
Fresh Water	1 x 100m3/hr at 75 m.i.c.
Liquid Mud	Discharge capacity 2 x 48m3/hr @ 55m head
Discharge stations	Midships and aft Port and Star
Couplings	Camlock 5” 4” and 3”
Metering Devices	Nitto Seiko on Fuel and Water
Sewage Treatment Plant	Sewage treatment plant for 30 persons
Oil Dispersant Booms	2 x 5m with dispersant tank c/w proportioner

LSA & FFA
External Fi Fi	Class 1 with Water/Foam
Fixed Fi Fi Extinguisher	CO2 fixed fire fighting system Vessel
Rescue Boat	SOLAS Rescue boat 6 man c/w 25 HP outboard
Fixed Gas Detection	H2S and Ex sensors in ER and Acco supply air

Accomodation
Crew (30 Total)	2 x single, 2 x 2 berth, 6 x 4 berth cabins
Hospital / First Aid	Single Berth
Cold store	8.5m3 at -20oC
Chiller store	11.3m3 at +4oC
Laundry	2 washers and 2 driers
