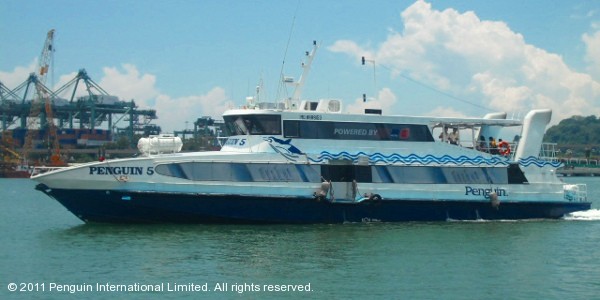

183-Pax Passenger Ferry
| Vessel Overview |
| Owners |
Penguin Group |
| Port of Registry |
Portsmouth |
| Flag |
Commonwealth Of Dominica |
| Official No. |
50587 |
| IMO No. |
8888159 |
| Call Sign |
J7C17 |
| Year Built |
1986 (Repowered in 2014) |
| Place of Build |
Australia |
| Builder |
SBF Shipbuilder Pty Ltd |
| Hull Type / Make |
Aluminium Passenger Ferry |
| Decks |
Two (2) |
| Classification |
Sing-Lloyd |
| MMSI No. |
325 587 000 |
| Hull Particulars |
| Length Overall |
28.25 m |
| Breadth Moulded |
6.00 m |
| Depth Moulded |
2.00 m |
| Loaded Draft |
1.01 m |
| Tonnage |
| GRT |
139 MT |
| NRT |
68 MT |
| DWT |
81 MT |
| Pax & Crew Capacity |
| Passengers |
183 |
| Crew |
6 including Master |
| Performance |
| Light |
30 knots |
| Loaded |
27 knots |
| Main Machinery |
| Main Engines |
3 x MTU 12V2000M70
788kW @ 2100 rpm |
| Propulsion |
3 x Hamilton WaterJets H521 |
| Auxiliary |
2 x Cummins 6BT 5.9G2 (M)
65kW @ 1500 rpm |
| Gearbox |
3 x ZF BW 195 |
| Electronics and Controls |
| Compass |
Danforth Constellation |
| VHF |
NSR NVR 1000 |
| NAVTEX |
Furuno NX-500 |
| SSB |
Furuno FS-1562 |
| Radar |
Furano 1932 |
| EPIRB |
2 x NSR NEB 1000 |
| E. Sounder |
Furuno LS 4100 |
| GPS |
Furuno GP-32 |
| SART |
2 x NSR NAS 1000 |
| AIS |
JRC JHS-182 |
| SSAS |
Ocean Alert |
| SVDR |
Blu Veritas BLV-7100 |
| Safety of Life At Sea (SOLAS) Equipment |
| Life Raft |
4 NOS (4 x 65 pax) , as per SOLAS |
| Life Buoys |
8 on board as per SOLAS |
Life Jackets
(with light & whistle) |
212 as per SOLAS |
| Fire Fighting Equipment |
| Extinguisher |
16 portable units |
| Fire Hose |
3 lengths |
| Emer. F / Pump |
1 portable unit |
| Tank Capacities |
| Fuel Oil |
8,000 L |
| Fresh Water |
1,000 L |
| Pumps |
| Bilge Pump |
Fitted |
| GS Pump |
Fitted |
| FW Pump |
Fitted |
The details on this specification are believed to be correct but not guaranteed. For General Arrangement and other additional details, please contact enquiries@pelican-offshore.com
