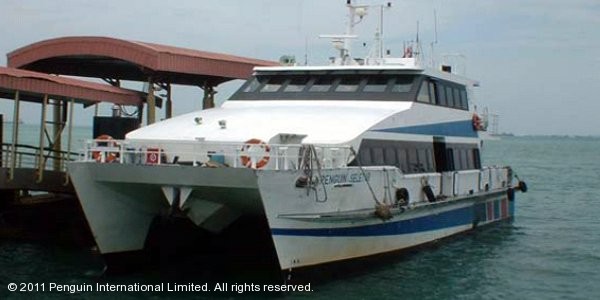

114-Pax Passenger Ferry
| Vessel Overviewiew |
| Owners |
Penguin Group |
| Port of Registry |
Funafuti |
| Flag |
Tuvalu |
| Classification |
IS Class HCE Light Ship / Fast Passenger Carrier Tropical Zone |
| Official No. |
21119909 |
| IMO No. |
9209415 |
| Call Sign |
T2JY3 |
| MMSI No. |
572 829 000 |
| Year Built |
1999 |
| Place of Build |
Singapore |
| Builder |
Aluminium Craft (88) Pte Ltd |
| Hull Type / Make |
Catamaran Passenger Ferry / Aluminium |
| Decks |
Two (2) |
| Hull Particulars |
| Length Overall |
23.00 m |
| Breadth Moulded |
7.00 m |
| Depth Moulded |
2.90 m |
| Loaded Draft |
1.50 m |
| Tonnage |
| GRT |
139 MT |
| NRT |
48 MT |
| DWT |
43 MT |
| Pax & Crew Capacity |
| Passengers |
114 |
| Crew |
6 |
| Performance |
| Light |
20 knots |
| Loaded |
18 knots |
| Main Machinery |
| Main Engines |
2 x MTU 12V183TE72 610 ekW @ 2100 rpm |
| Propellers |
2 x Fixed Pitch Propeller |
| Auxiliary |
2 x Cummins 4BT 3.9 (M) 48 ekW @ 1500 rpm |
| Gearbox |
2 x ZF BW 195 |
| Electronics and Controls |
| Compass |
Saturn |
| VHF |
Samyung ENC STR-580D VHF DSC |
| NAVTEX |
ICS NAV-5 |
| SSB |
N.A. |
| Radar |
Furuno 1941 Mark 2 |
| EPIRB |
ACR / McMurdo E3 |
| E. Sounder |
Furuno FCV-668 |
| GPS |
Furuno GP-80 |
| SART |
McMurdo RT9-3 |
| AIS |
JRC JHS-180 |
| SSAS |
Ocean Alert |
| SVDR |
Blu Veritas BLV-7130 |
| Safety of Life At Sea (SOLAS) Equipment |
| Life Raft |
2 NOS (total for 130 persons) , as per SOLAS |
| Life Buoys |
8 on board as per SOLAS |
| Life Jackets |
135 (adults) / 15 (children) as per SOLAS |
| Fire Fighting Equipment |
| Extinguisher |
15 units |
| Fire Hose |
5 lengths |
| Emer. F / Pump |
1 portable unit |
| Tank Capacities |
| Fuel Oil |
4,000 L |
| Fresh Water |
1,000 L |
| Pumps |
| Bilge Pump |
Fitted |
| GS Pump |
Fitted |
| FW Pump |
Fitted |
The details on this specification are believed to be correct but not guaranteed. For General Arrangement and other additional details, please contact enquiries@pelican-offshore.com
