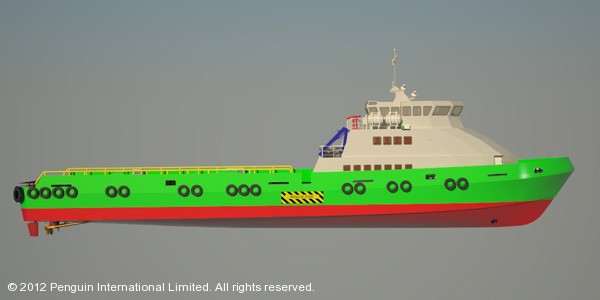

The Fit-for-Purpose DP1 Fast Supply Intervention Vessel (FSIV)

Leveraging on our experience as an owner-operator of large Fast Supply Intervention Vessels since 1997, we have developed a fit-for-purpose DP1 FSIV dubbed the Flex-50.

With a Length Overall of 50 metres, the Flex-50 base model can carry up to 75 passengers in business class seats and 200 tons of deck cargo on a 200 square metre clear deck area.

As with all our Flexes, owners can choose from a variety of configurations and fittings to suit their unique crew/cargo transportation needs.

Vessel Overview
Vessel DP1 Aluminium Monohull Multi-Role FSIV
Designed and built by Penguin Shipyard
Classification American Bureau of Shipping
✠A1, HSC Crewboat, ✠AMS, DPS-1
Safety Regulation ABS and Panama Flag State requirements
Regs, Codes, Guidelines MARPOL, SOLAS, ISM, ISPS, IMDG
Hull Particulars
Length Overall 50.00 m
Breadth Moulded   9.10 m
Depth Moulded   4.00 m
Loaded Draft   2.55 m
Accommodation and Storage
Passenger Capacity Business Class 75 pax
VIP Room (2 men) Fitted (Option for Sick Bay)
Passenger Toilets 2 cubicles
Entertainment System 3 x LCD TV screens
Crew Cabins / Bunks 8 / 14
Crew Toilets 2 cubicles with shower
Crew Mess and Galley Fitted
Crew Washer and Dryer Fitted
Separate Walk-In Freezer and Chiller Fitted
Dry Store (on crew deck) Fitted
Public Address System Fitted
Cargo Deck
Clear Deck Area 200 sqm
Deck Cargo Capacity 200 MT
Deck Strength 2.5 MT / sqm
Deck Dimensions 26.6 m x 7.4 m
Cargo Railing Height 1.0 m
Deck Crane Credence, CRE230BSM 1.8 Ton @ 6 m
Remarks Adequate cargo retainers and lashing lugs on both sides for securing deck cargo
Tank Capacities
Fuel Oil 171,000 L
Fresh Water 52,000 L
Dirty Oil Tank 1.5 cbm
Dispersant 0.2 cbm
IMO-Approved Sewage Treatment Plant Fitted for 20 pax
IMO-Approved Oily Water Separator 15 ppm
Performance
Maximum Speed 25 knots @ 100% MCR & 150 MT DWT
Maximum Fuel Consumption 1740 L/hr
Economical Speed 23 knots @ 85% MCR & 150 MT DWT
Economical Fuel Consumption 1500 L/hr
Digital Fuel Consumption Monitor Fitted
Main Machinery
Number of Main Engines 4 units with resilient mountings
Make / Type MTU 16 V4000 M53 Electronic IMO Tier 2
Total BHP 4 x 2466 BHP @ 1800 rpm
Fuel Flow Meters Installed on all main engines
Propellers 4 x fixed pitch, Ni-Al-Bronze, 5 blades
Bow Thruster 2 units electro-hydraulic @ 200 HP
Dynamic Positioning System Kongsberg DP1
Generating Sets (Auxiliaries)
Prime Movers 3 x 355 BHP @ 1500 rpm
Make / Type Cummins QSM11 – DM
Fuel Flow Meters Installed on all generators
Generators 3 x Newage Stamford HCM534C 250 ekW
Vessel Power Supply 415/220 Volt AC, 50 Hz, 3-phase + 24 Volt DC
Shore Power / Reefer Sockets 1 / 4
Tonnage
GRT 469 MT
NRT 140 MT
DWT 346 MT
Electronics and Controls
GMDSS Sea Area A1+ A2+ A3
VHF Furuno FM 3000
SSB Radio (Non-GMDSS) Furuno FS-1503
Satellite Telephone / Fax Sailor FB250
Marine Radar Furuno FAR-2117 96NM
GPS Furuno GP-150
Echo Sounder Furuno
Gyro Compass Anschuetz, STC22
Magnetic Compass Riviera 6″
Navtex Furuno NX-700
Public Address / Intercom Vingtor
Search Lights Kescom x 3, 1000W
EPIRB McMurdo E5
SART McMurdo S4
AIS Furuno FA-1502
Remote CCTV 2 x around wheelhouse
Safety of Life At Sea (SOLAS) Equipment
Life Rafts 5 x 25-man on each side, as per SOLAS
Life Jackets 109 on board as per SOLAS
Life Buoys 8 on board as per SOLAS
Scrambling Nets 2 units
Other Equipment Pyrotechnics, line-throwing apparatus
Rescue Zone Port and Starboard
Emergency Response Features
External Fire Fighting Two external fire fighting monitor with remote clutch and controls
@ 2 x 600 cbm per hour
Motorised Workboat Fitted
For General Arrangement and other additional details, please contact psacommercial@penguin.com.sg
